Description
* Please note either FDE or Black in order notes for which color you would like. Please allow 1 – 2 days to process all Elcan orders.*
The ELCAN SpecterDR 1x/4x Dual Role Optical Sight is the world’s first truly dual field of view combat optic. With a simple throw of a lever, operators can instantly switch between 1x for close-quarters battle (CQB) and 4x for medium-range engagements no zoom distortion, no loss of eye relief.
New for 2024:
-
Integrated Picatinny Rails for mounting accessories directly to the optic housing
-
Ambidextrous Magnification Throw Levers for rapid adjustment in any shooting position
-
Upgraded Battery Covers for improved durability and reliability
-
CERAKOTE Performance Finishes available in Black or Flat Dark Earth (FDE) for enhanced wear resistance
Optical Excellence
The SpecterDR offers an optimized optical path with identical eye relief in both 1x and 4x modes. In 1x, it delivers the widest field of view in its class ideal for rapid target acquisition. In 4x, users benefit from a generous field of view and ELCAN’s renowned crystal-clear glass.
Flexible Illumination Options
Choose between illuminating the full reticle or a precise red aiming dot depending on mission requirements. This flexibility makes the SpecterDR a go to solution for both military and professional users who demand performance and reliability in any environment.
Optional XOPTEK Micro Reflex Sight
Now available as an integrated add-on, the XOPTEK Micro Reflex Sight provides fast, accurate aiming at close range. This lightweight, rugged red dot can be used on pistols, carbines, or as a top-mounted backup sight on the SpecterDR—projecting a bright 3 MOA red dot for rapid engagement of close to mid-range targets.
Key Features:
-
True 1x and 4x optical paths with no compromise on eye relief
-
Built-in ambidextrous throw lever for instant magnification change
-
Largest field of view in 1x mode in the industry
-
Rugged housing with Picatinny accessory rails
-
Available in Black or Flat Dark Earth (CERAKOTE)
-
Compatible with XOPTEK Micro Reflex Sight
-
Backed by ELCAN’s trusted reputation for durability and optical clarity
| Magnification | 4x / 1x |
| Length | 153mm nominal |
| Width | 68mm nominal |
| Height | 72mm nominal |
| Weight | 655g nominal |
| Reticle | Dual-thickness ballistic crosshair with user-selectable red dot, VSOR rangefinder, and area fire circles. |
| Aiming Dot diameter | 1.5 MoA @ 4x, 6 MoA @ 1x |
| Ballistic correction: | Dual-thickness ballistic crosshair with user-selectable red dot, VSOR rangefinder, and area fire circles. |
| DFOV14-C1: | CX5395 reticle: 100-600m for 5.56 carbine,700-1000m for 5.56mm LMG |

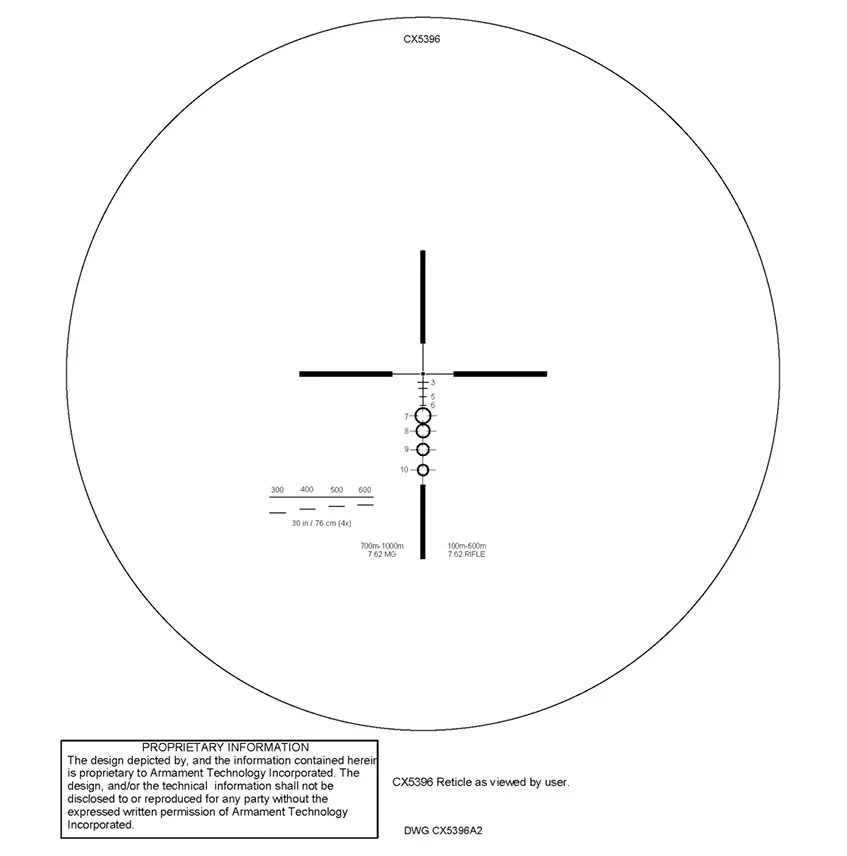

| DFOV14-C2: | CX5396 reticle: 100-600m for 7.62 rifle, 700-1000m for 7.62mm LMG |
| CQB offset | <44mm @ 60m |
| Field of View | 26 deg @ 1x, 6.5 deg @ 4x |
| FoV @4x | 11.4 m @ 100 m (34.2 ft @ 100 yds) |
| FoV @1x | 48.8 m @ 100 m (146.3 ft @ 100 yds) |
| Illumination source | Battery-powered LED |
| Crosshair illumination | 5 settings, AN/PVS-22 compatible |
| Red Dot illumination | 5 settings, AN/PVS-22 compatible |
| Eye Relief | 70mm |
| Entrance pupil | 32mm |
| Exit pupil | 8mm |
| Nominal focus | 150m @ 4x, 70m @ 1x |
| Fixed focus range | 20m to infinity |
| Battery type | CR2032 (3v Lithium) |
| Battery life | 382hrs on max RD/reticle setting, 1730hrs on second highest RD setting, 1208 hrs on second highest reticle setting |
| Exterior finish | CERAKOTE® performance finish in Black or Flat Dark Earth (FDE) |
| Adjustment resolution | 0.5 minute of angle |
| Adjustment range | 120 minutes of angle |
| Base requirement | Mil-Std-1913 ‘Picatinny Rail’ |
| Attachment | A.R.M.S. Levers |
| Shockproof: | 450 g’s |
